| Processor | Intel 8 / 9 / 10 45W CPU; Intel Alder Lake-H 12th gen; Intel Raptor Lake-H 13th gen CPU | Memory Type | DDR4: 2133MHz / 2400MHz / 2666MHz / 3200MHZ |
| CPU Models | i7-10750H, i9-9880H, i7-9750H, i7-8750H, i7-12700H, i9-12900H, i9-13900H, etc. | Memory Slot | 2*DDR4 S0-DIMM, supports up to 64GB |
| Graphics | Intel® UHD Graphics; Supports NVIDIA GTX1650TI 4G / RTX2060 6G / RTX3050TI 8G | WiFi Slot | 1 * M.2 2230 slot (WIFI/BT); 802.11 b/g/n/AC/AX; BT 4.0+ |
| I/O Ports (Front) | 1*Power Button, 2*USB 2.0 | Storage Slots | 1*M.2 2280 (SATA/NVME Gen3X4); 1*M.2 2280 (SATA/NVME); 1*2.5" SATA HDD |

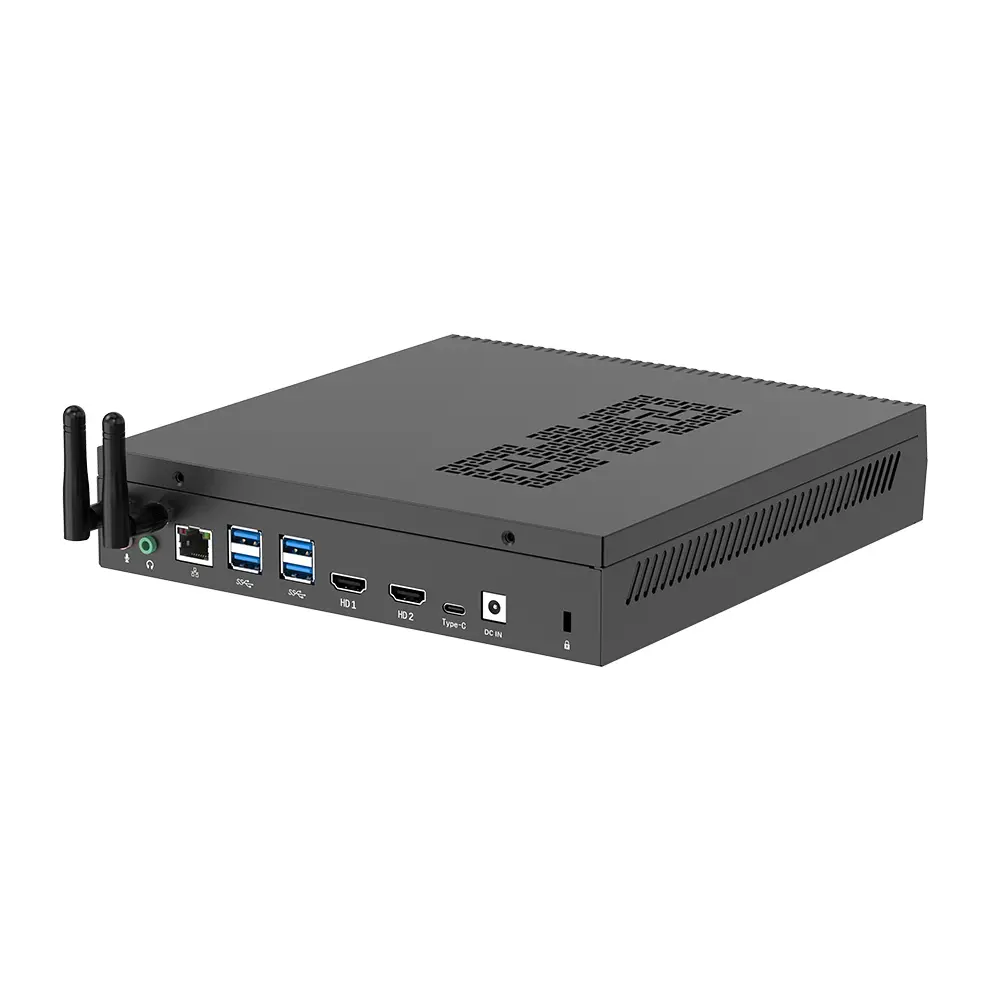

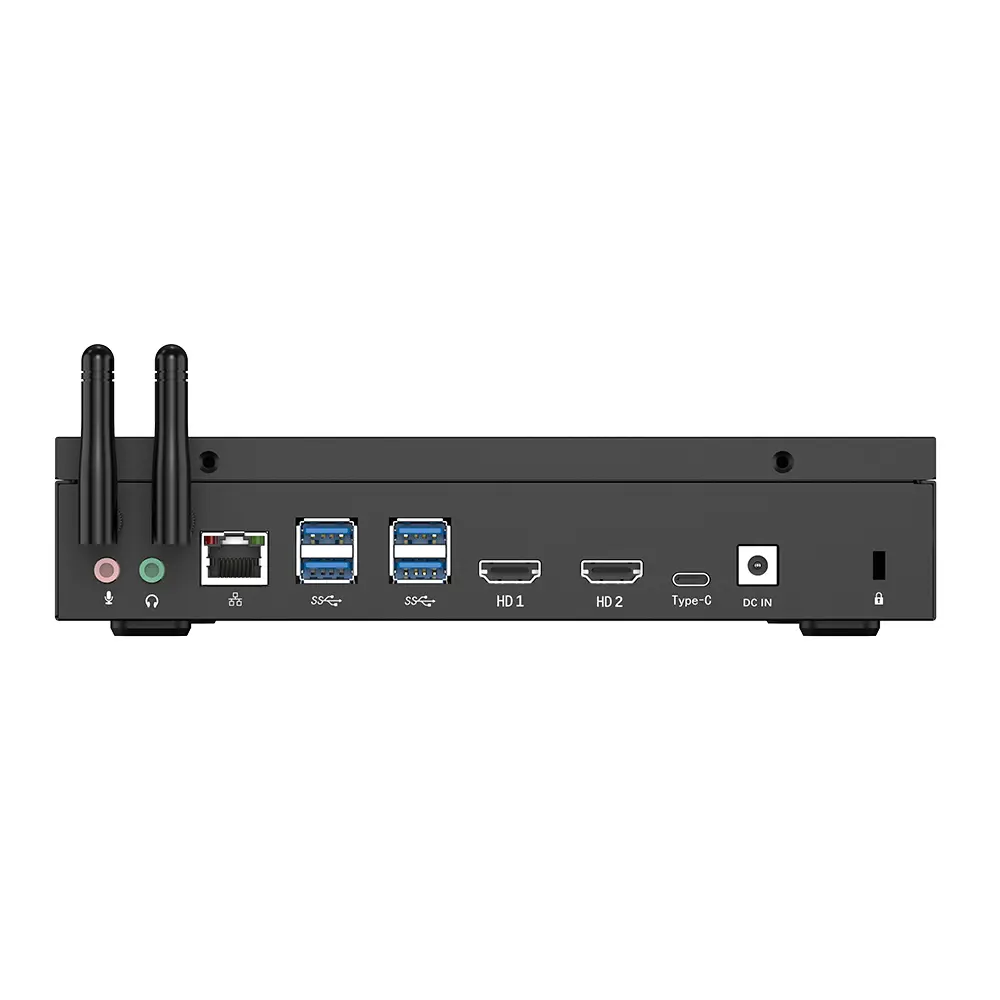

| I/O Ports (Back) | 1*DC Jack (12-19V); 1*RJ45 1000M; 1*HDMI 1.4 (4K 30Hz); 1*HDMI 2.0 (4K 60Hz); 1*Type-C (4K 60Hz); 4*USB3.2 Gen1; Audio/MIC | Dimensions | 227 * 215 * 45mm; Weight: ~1300g |
| Environment | Work: 0~50℃ (5%-95% Hum); Storage: -20~70℃ (5%-95% Hum) | System Support | AMI UEFI BIOS, PXE, WOL; 19V 180W Adapter |
Equipped with NVIDIA RTX 3050 Ti (8GB GDDR6) independent graphics card, performance is improved by 220% compared to previous generation compact PCs. Supports DLSS 3.0 and third-generation ray tracing cores.
Dual Vortex Cooling: Patented system (ZL202310001.X) allows 75W continuous GPU performance release.
Direct Connection: GPU connected via CPU PCIe 4.0x8 channel, increasing CUDA acceleration by 37%.
Utilizing the Intel i9-13900H processor (24 threads, 5.4GHz turbo frequency). Features Cinebench R23 multi-core scores of 34,850 points (41% increase over 12th gen).
World's thinnest 45mm body accommodating a full-size graphics card. Six-layer stacked motherboard reduces signal loss by 62%.
Liquid metal + heat spreader conduction ensures full load noise <25dBA. IP5X dust filter for harsh industrial environments.
WiFi 6E (6GHz) + 2.5G network port + Bluetooth Mesh. Supports 9.6Gbps transmission and 200+ concurrent device connections.
Portable AI Workstation: RTX 3050 Ti accelerates Stable Diffusion (512x512 in 2.1s). Includes 180W GaN adapter.
Smart Medical Imaging: Three-screen 4K output (DICOM 3.0), medical-grade EMC certification, antibacterial shell.
Machine Vision: Dual M.2 SSD RAID 0, processing 12,000 images/sec. Cold start support at -20℃.
Hardware Deep Transformation: Optional Thunderbolt 4 (PD 100W) and PoE++ network ports.
Enterprise Management: Intel vPro + TPM 2.0 encryption chip, custom power consumption limits (28W-65W).
Strict Certification: MIL-STD-810H military drop protection and IEC 61373 rail vibration certification.
