| Processor | CPU: | Intel Comet Lake-U 15M Core i7-10510U, i5-10210U, i3-10110U, 5205U (Optional) | Storage & Memory | Memory Type: | DDR4 2133MHz/2400MHz/2666MHz |
| GPU: | Intel® UHD Graphics | Memory Slot: | 2X DDR4 SO-DIMM | ||
| Power: | 1X DC Jack 5.5*2.5mm (12-19V) | Power Port: | 12V–19V 40W Adapter Support | ||

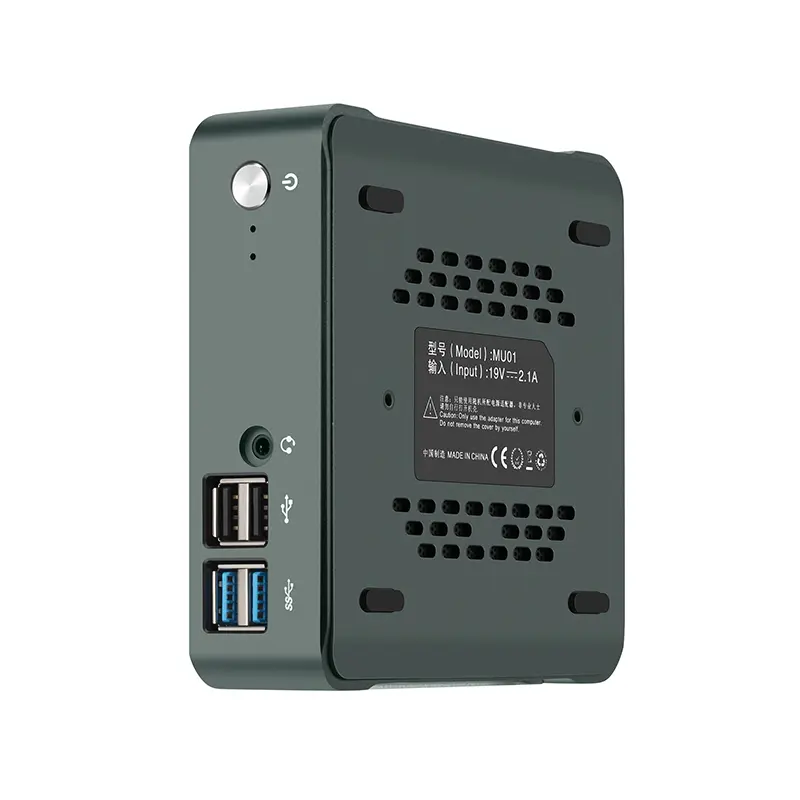

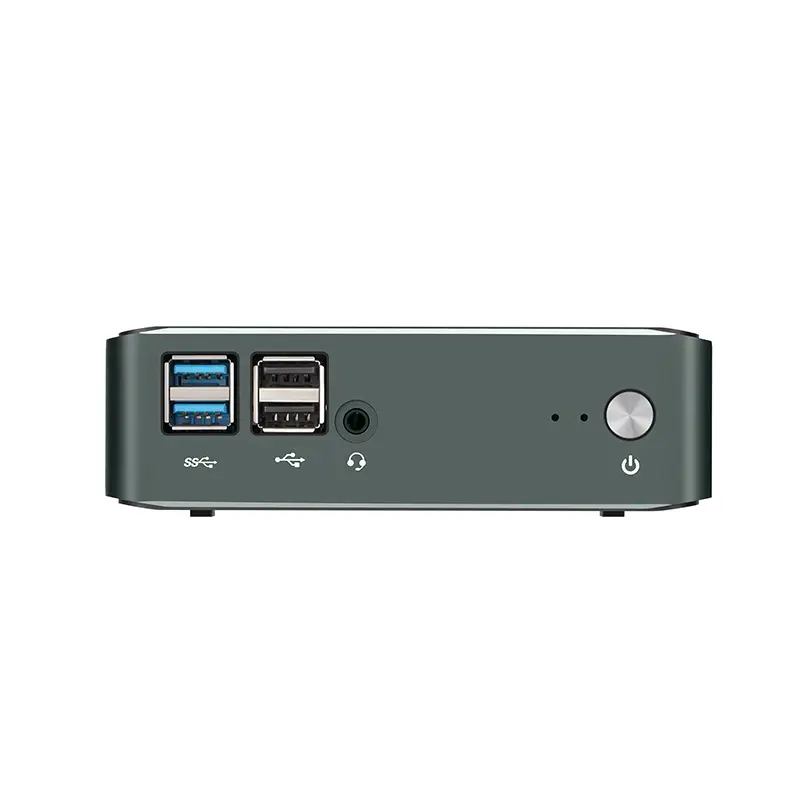

| I/O Ports | Front Panel: | Power Button, 1x Power LED, 1x HDD LED, 2x USB 3.0, 2x USB 2.0, 1x Type-C, 3.5mm Earphone & MIC | Connectivity & Misc | Network: | 1* RJ45 1000M |

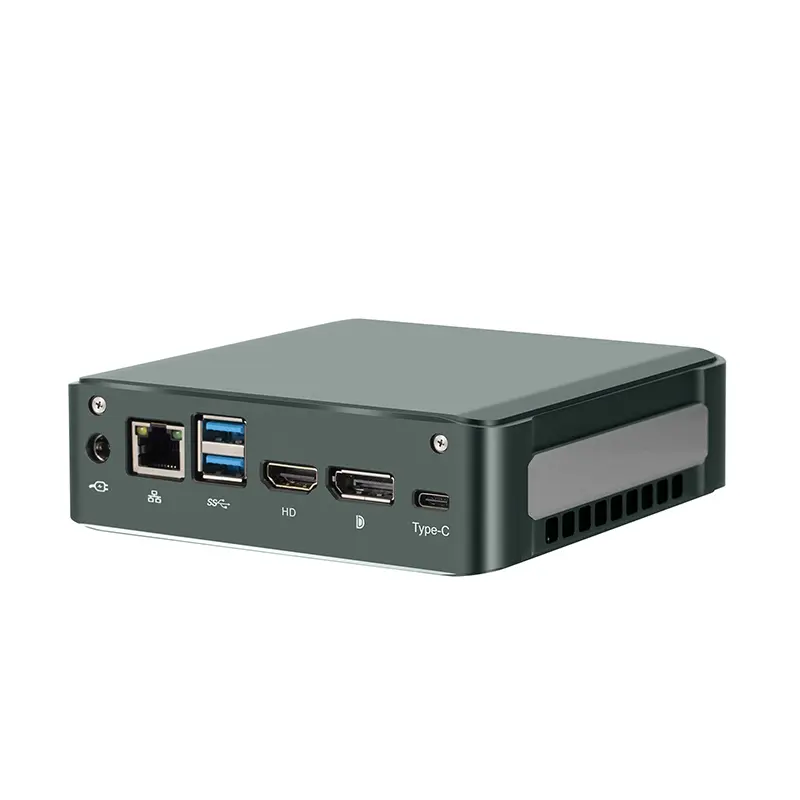

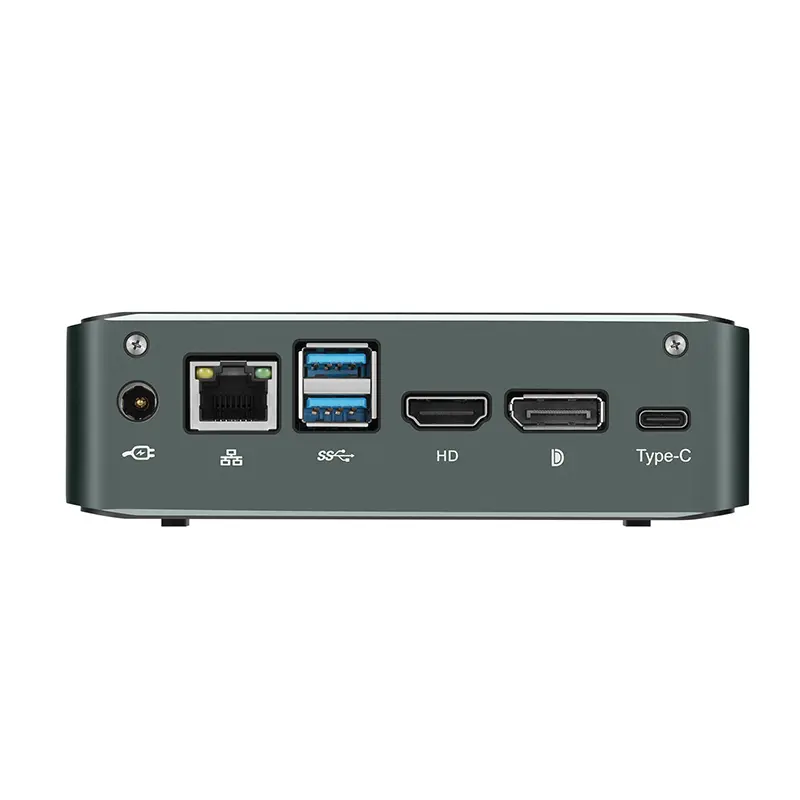

| Back Panel: | 1x HDMI 2.0, 1x DP 1.2, 2x USB 3.0, 1x RS232 DB9 COM | WiFi/BT: | M.2 2230 slot (802.11 b/g/n/AC/AX, BT 4.0+) | ||
| Expansion: | 1* M.2 2280 (SATA/NVMe Gen3 X4), 1* 2.5" SATA HDD | Dimensions: | 128*128*38.5mm | Weight: ~630g | ||
| Environment: | Op: 0~50℃, 5%~95% Humidity | Storage: -20~70℃ | BIOS: | AMI UEFI BIOS, Support PXE, WOL |
Architecture: HDMI 2.0 (4K@60Hz) + DP 1.2 (8K@30Hz) + Type-C (4K@60Hz PD) matrix.
Industrial Use: Run SCADA on the main screen, heat maps on the secondary, and debugging on Type-C.
Retail: Dynamic 3-screen HDR10 advertisements and electronic price tag power support.
RS232: Built-in ±15kV ESD protection for PLC/CNC Modbus RTU zero-delay communication.
Dual RJ45: VLAN support for physical isolation between OT and IT management networks.
Performance: Supports PXE batch startup and 32-channel 1080P streaming with low CPU load.
All-aluminum nano-die casting body increases heat dissipation area by 73%. Supports wall-mounted or guide rail installation with IEC 60068-2-64 seismic certification (5Grms). Intelligent cooling switches between fanless (passive) and turbine (active) based on temperature.
Combines NVMe Gen3x4 SSD (3500MB/s) for speed and a 2.5-inch HDD for 16TB mass storage. Optimized for edge computing with high device firmware recovery efficiency.
M.2 slot supports 5G (Sub-6GHz) modules and Intel AX210 WiFi 6E (6GHz/160MHz). Bluetooth Mesh manages 50+ smart sensors for factory-wide control.
RS232 connection to meter clusters; dual ports isolate internal/external data. High-speed FFT algorithms detect power quality harmonics in <5ms.
Type-C industrial camera integration (USB3.1 Vision). Local AI reasoning using OpenVINO processes up to 1200 images per second.
DICOM calibration output via HDMI. Antibacterial shell and EN 60601-1-2 EMC certification for medical safety.
PoE++ 90W power supply and customized GPIO boards (16 digital I/O, ±24V tolerance).
Windows IoT Enterprise / Ubuntu Core 22 pre-installation and protocol stack kits (Modbus/Profinet).
EN 50121 rail transit and ATEX Zone 2 explosion-proof certification for hazardous areas.
