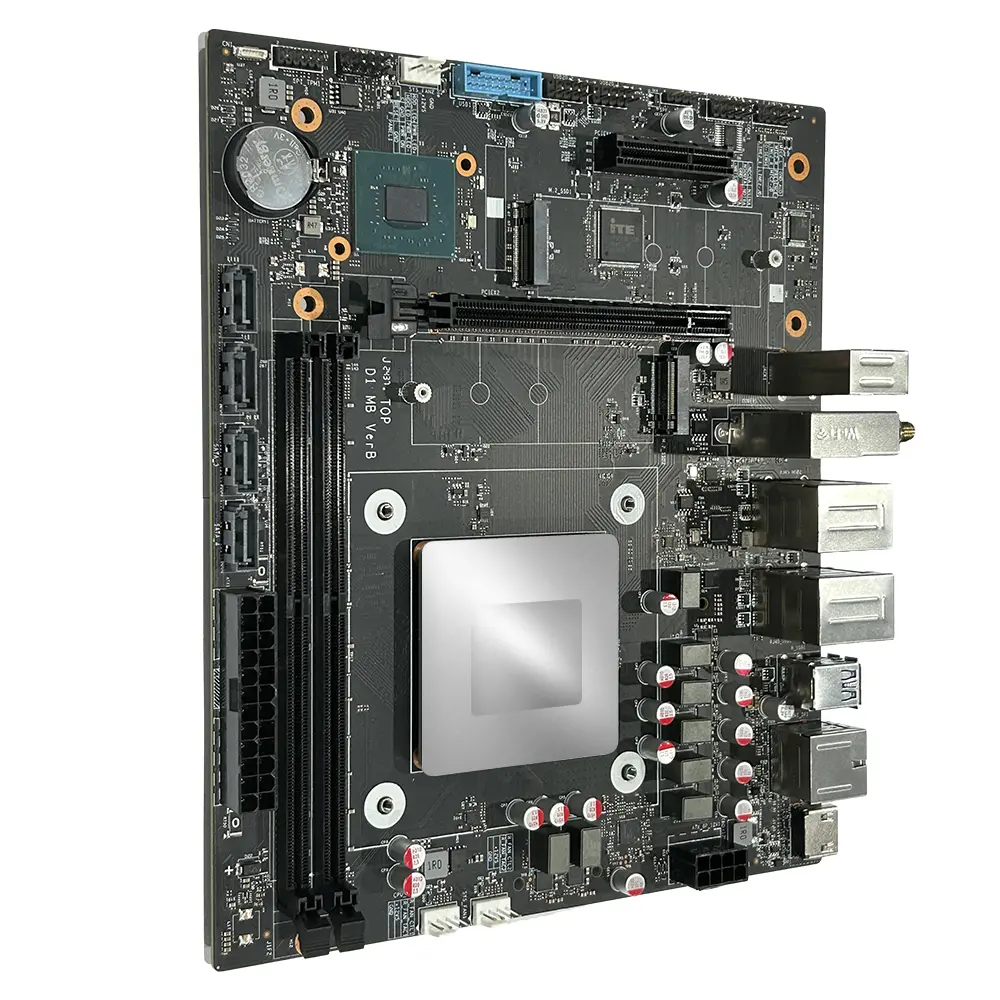

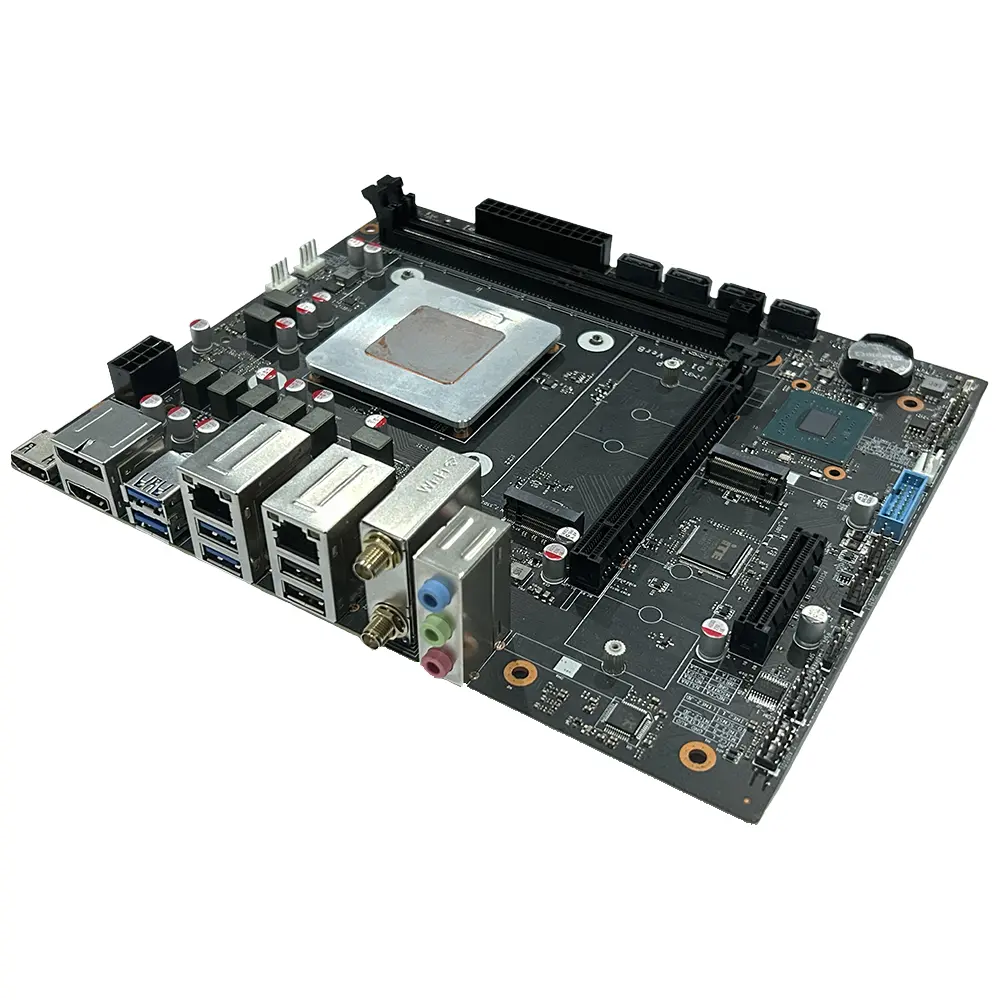

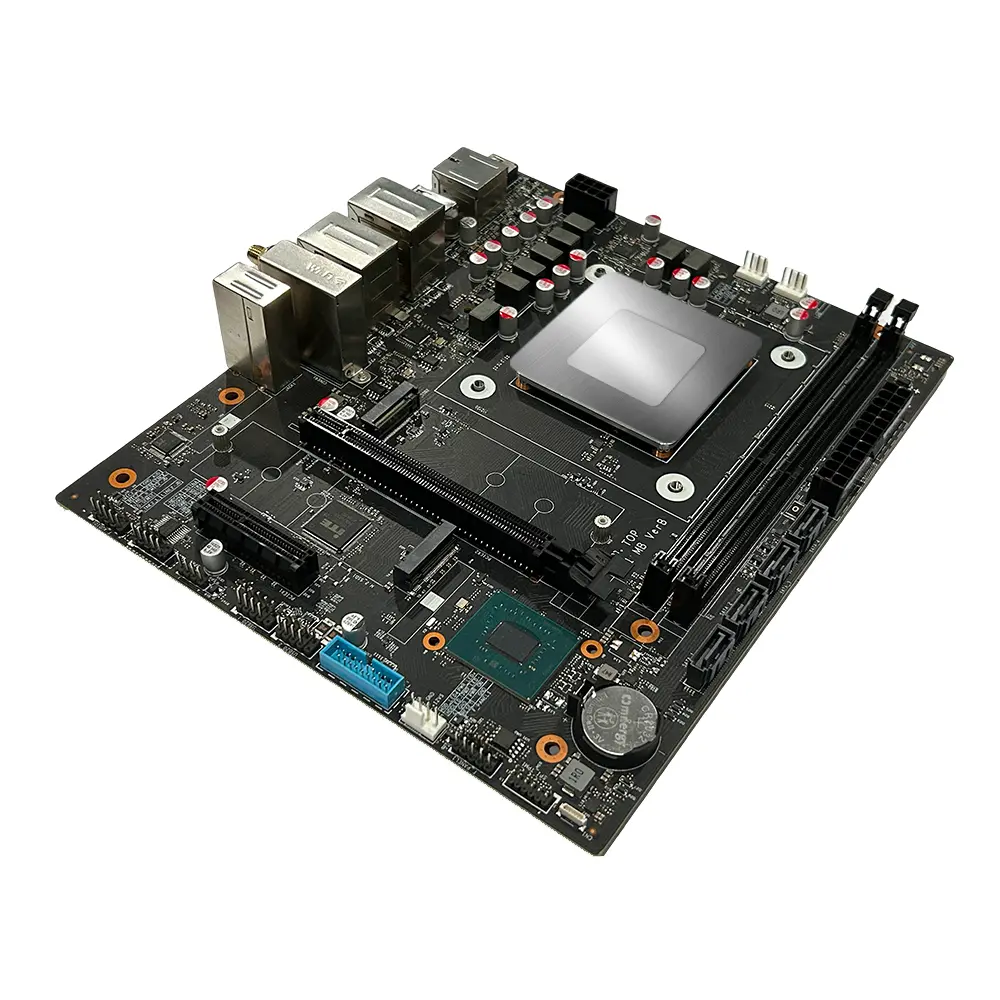

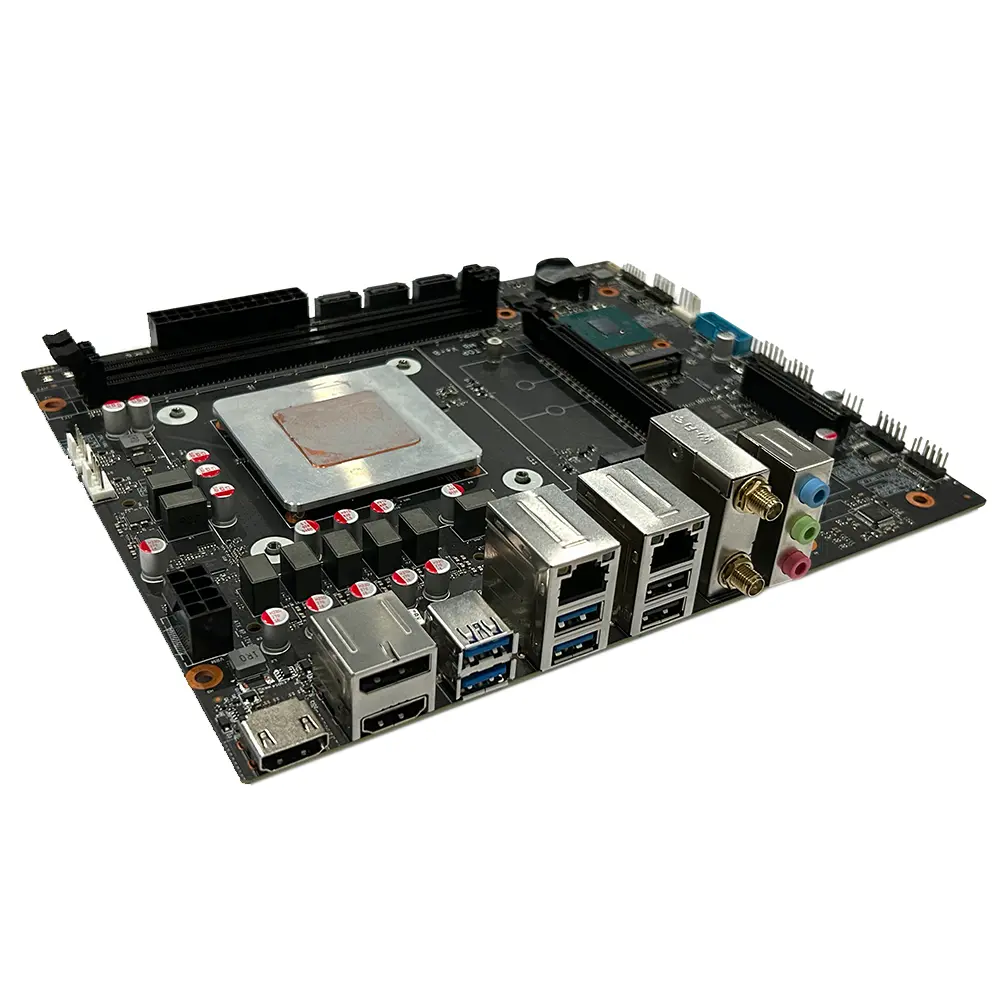

Introducing the D1 product model, a high-performance solution tailored for demanding computing needs. This powerful device is equipped with the latest Intel Raptor Lake HX 13th generation CPUs, including options such as the Intel i7-13700HX, i5-13600HX, and i5-13500HX, featuring a thermal design power (TDP) of 55W, The D1 supports extensive memory capacities with 2 DDR5 UDIMM slots, allowing for an upgradeable memory capacity of up to 96GB, ensuring that performance meets the demands of modern applications. Its compact size of 225mm x 190mm aligns with Micro ATX (M-ATX) standards, making it suitable for various setups, As a trusted product from a reliable China factory, the D1 ensures quality and performance, making it an ideal choice for those searching for high-quality computing solutions from reputable suppliers. Discover the D1 and elevate your operational efficiency today!
Send Inquiry

Product Description

Product Detailed Specification
Mainboard Chip
Main chipsetIntel® HM670/HM770 and other PCH
Audio chipBuilt-in HD sound chip
Network card chipBoard network card chip
Processor Specifications
CPU typeIntel i7-13700HX / i5-13600HX / i5-13500HX, etc.
CPU platformIntel Raptor Lake HX 13th Gen CPU TDP: 55W
Video cardIntel® UHD Graphics
Memory Specifications
Memory typeDDR5 4800MHz / 5600MHz
Memory slots2 × DDR5 UDIMM up to 96GB
Expansion Slots
WiFi slot1 × M.2 2230 slot (support WIFI/BT) WiFi: 802.11 b/g/n/AC/AX Bluetooth 4.0 or above
SSD slot1 × M.2 2280 slot (supports NVMe PCIe 4.0 x4)
1 × M.2 2280 slot (supports NVMe PCIe 3.0 x4)
External Interface
Power portATX source
Display interface2 × HDMI Out 2.0 | 1 × DP 1.4
Network interface1 × RJ45 1000M
1 × RJ45 2500M
USB ports4 × USB 3.2 Gen1 | 2 × USB 2.0
Tips for Safe Use
⚠Before using this product, please be sure to read the product manual carefully.
⚠For boards that are not ready to be installed, they should be stored in anti-static protective bags.
⚠Release static electricity by touching grounded metal for 10 seconds before handling the board.
⚠Wear anti-static gloves and only touch the edges of the board.
⚠Turn off AC power before plugging, reconfiguring, or moving the board.
※ The diagram is for reference only. Please refer to the actual product.

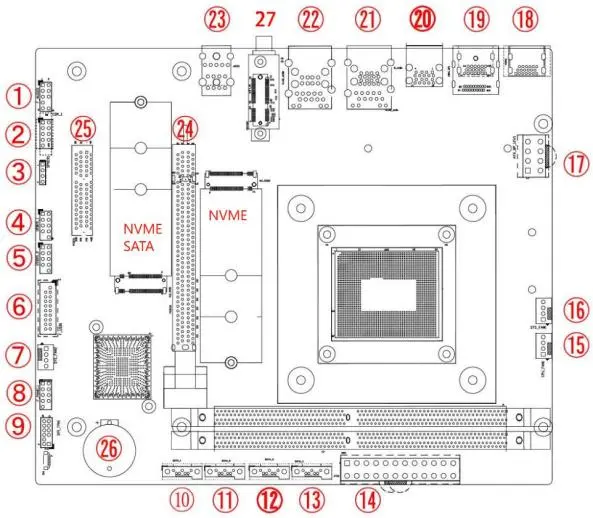

Motherboard diagram reference
No.DescriptionNo.Description
1F_Audio Interface15CPU fan interface
2COM Serial port16SYS fan interface
3Buzzer17ATX_8PIN 12V
4-5USB 2.0 pins18HDMI 2.0 port
6USB 3.0 Front Panel19DP + HDMI port
21RJ45 (1G) + USB 3.122RJ45 (2.5G) + USB 2.0
Safety Tips
🔵Do not tear off serial numbers or warranty stickers to preserve warranty rights.
🔵Always unplug the power cord before installing or removing hardware.
🔵Ensure all connectors and sockets are tightly connected.
🔵Avoid touching metal wiring to prevent short circuits.
🔵Place the motherboard on an anti-static mat during installation.
🔵Check that the power supply voltage matches the standard value before powering on.
Memory Installation

Supported: 2 × 260-Pin DDR5 U-DIMM slots. Follow these steps carefully:

1Verify memory compatibility with motherboard specs.
2Align the foolproof mark (notch) on the memory stick with the slot.
3Insert vertically and press down until you hear a "click".
4To remove, push the side latches outward simultaneously.
Frequently Asked Questions (FAQ)
QWhat CPU generations are compatible with this motherboard?
AThis motherboard supports Intel 13th Generation Raptor Lake HX processors (i7-13700HX, i5-13600HX, etc.) with a TDP of 55W.
QWhat is the maximum RAM capacity supported?
AThe motherboard supports up to 96GB of DDR5 UDIMM memory at speeds of 4800MHz or 5600MHz via two slots.
QHow many displays can be connected simultaneously?
AYou can connect up to three displays using the 2 × HDMI 2.0 ports and 1 × DisplayPort 1.4.
QWhat storage expansion options are available?
AIt offers two M.2 2280 NVMe SSD slots (PCIe 4.0 and 3.0) and four SATA 3.0 ports for comprehensive storage needs.
QWhat are the environmental requirements for operation?
AOperating temperature is 0–40°C. Storage temperature is -20°C to 70°C, with humidity between 5%–95% non-condensing.
