| Processor specifications | CPU: | Intel i7-1270P / i7-1280-P 1340P 1360P ect. TDP: 28W Intel i7-12700H / i7-12900H 13700H 13900H ect. TDP: 45W |
Internal storage | Memory type： | DDR4 2133 MHz / 2400 MHz / 2666 MHz / 3200 MHz or 2 × DDR5 4800MHz / 5200MHz |
| CPU terrace: | Intel 12th Generation or 13th Gen CPU | Memory slot： | 2×DDR4 SO-DIMM up to 64GB or 2×DDR5 SO-DIMM up to 96GB |
||
| Video card: | Intel® Iris® Xe Graphics — Support for 4-display | ||||

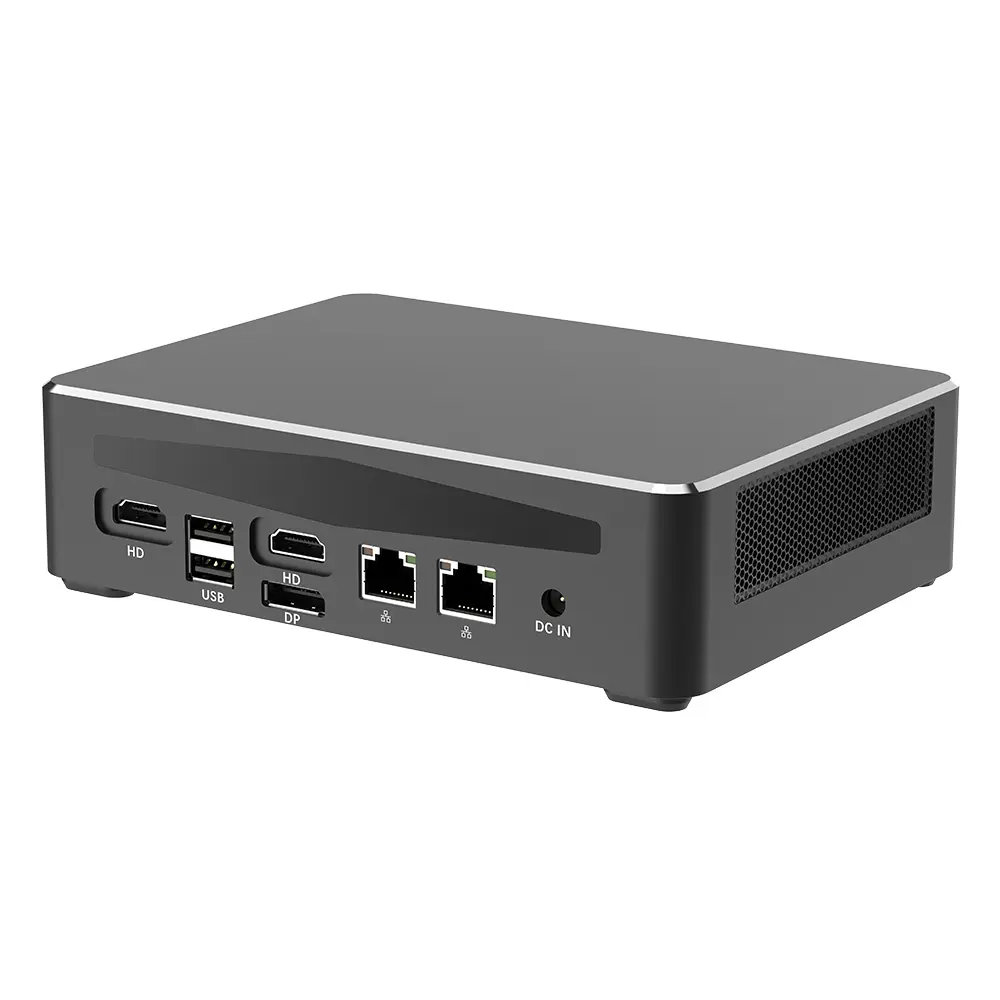

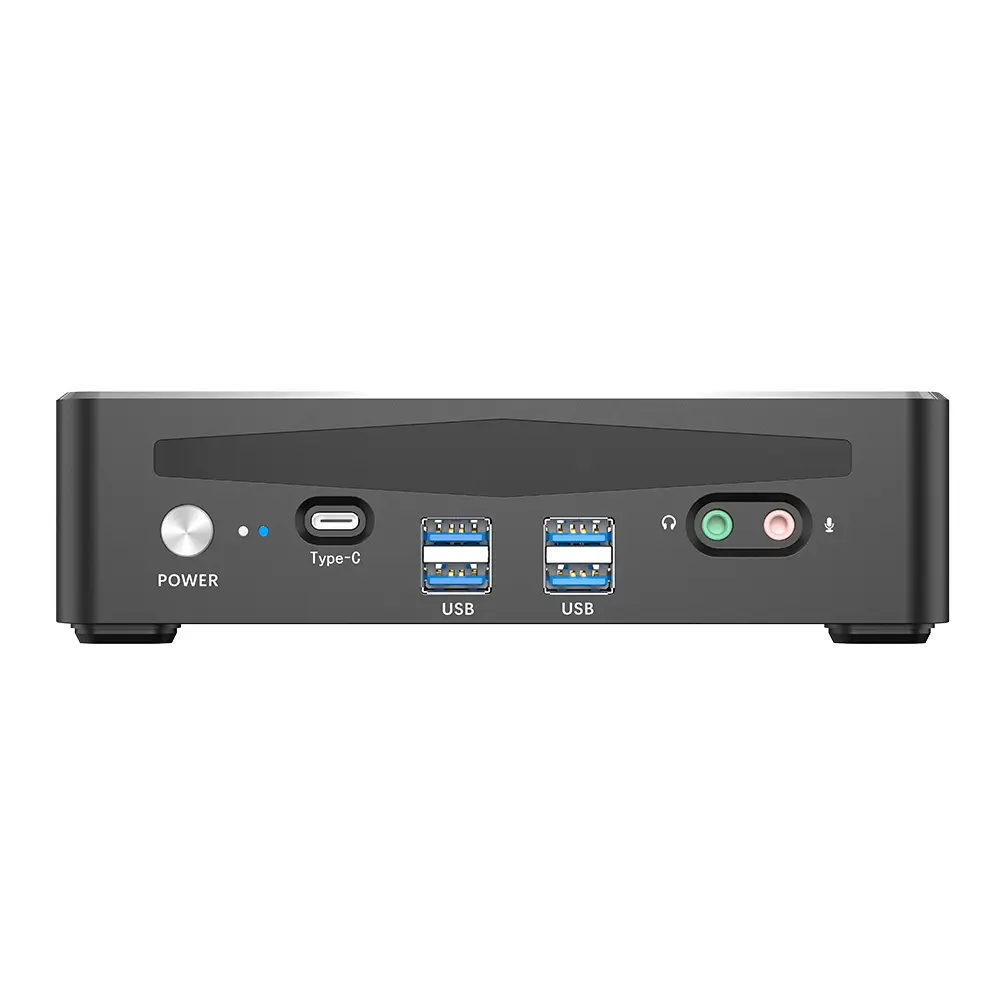

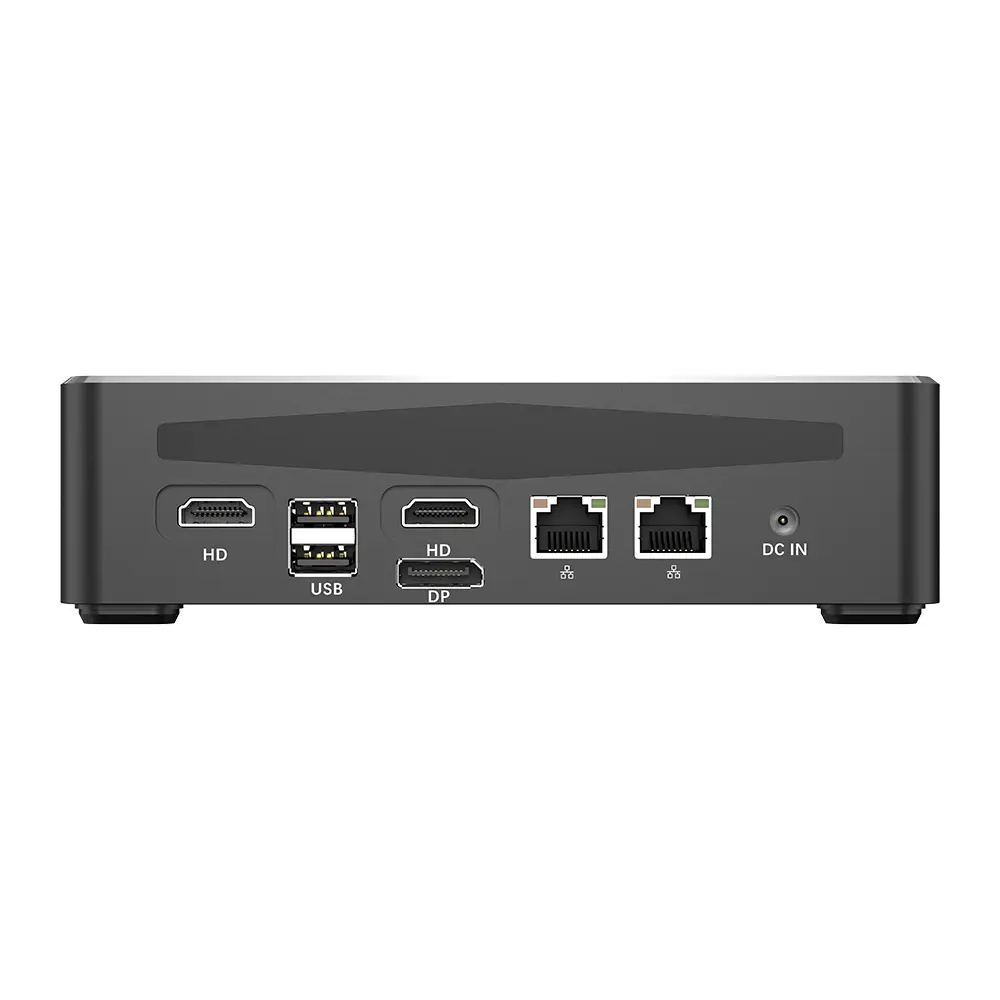

| Front panel | Boot button: | 1× Power Button | Back panel | Power port： | 1× DC Jack 5.5×2.5mm (12–19V) |
| Thunderbolt: | 1× Thunderbolt 4 (compatible with PD power supply) | Network interface： | 2× RJ45 2500M | ||
| USB ports: | 4× USB 3.2 Gen1 | Display interface： | 2× HDMI 2.0 (4K@60Hz) 1× DP 1.4 / 1× Type-C Thunderbolt 4 |
||
| Audio interface: | 1× 3.5mm Earphone / 1× 3.5mm MIC In | USB ports： | 2× USB 2.0 | ||
| Extended slot | WiFi slot: | 1× M.2 2230 slot (WiFi / BT support) WiFi: 802.11 b/g/n/AC/AX Bluetooth 4.0 or above |
Other parameters | Appearance size： | 174 × 128 × 45 mm |
| SSD slot: | 1× M.2 2280 slot (SATA / NVMe Gen3 ×4) 1× M.2 2280 slot (NVMe PCIe Gen4 ×4) |
Body weight： | Approx. 500g | ||
| HDD: | 1× SATA HDD 2.5-inch (optional) | Power adapter： | 12V–19V 90W | ||
| BIOS support： | AMI UEFI BIOS, Support for PXE, WOL | ||||
| Work environment： | Temperature: 0~50℃ | Humidity: 5%~95% | Storage environment： | Temperature: -20~70℃ | Humidity: 5%~95% | ||

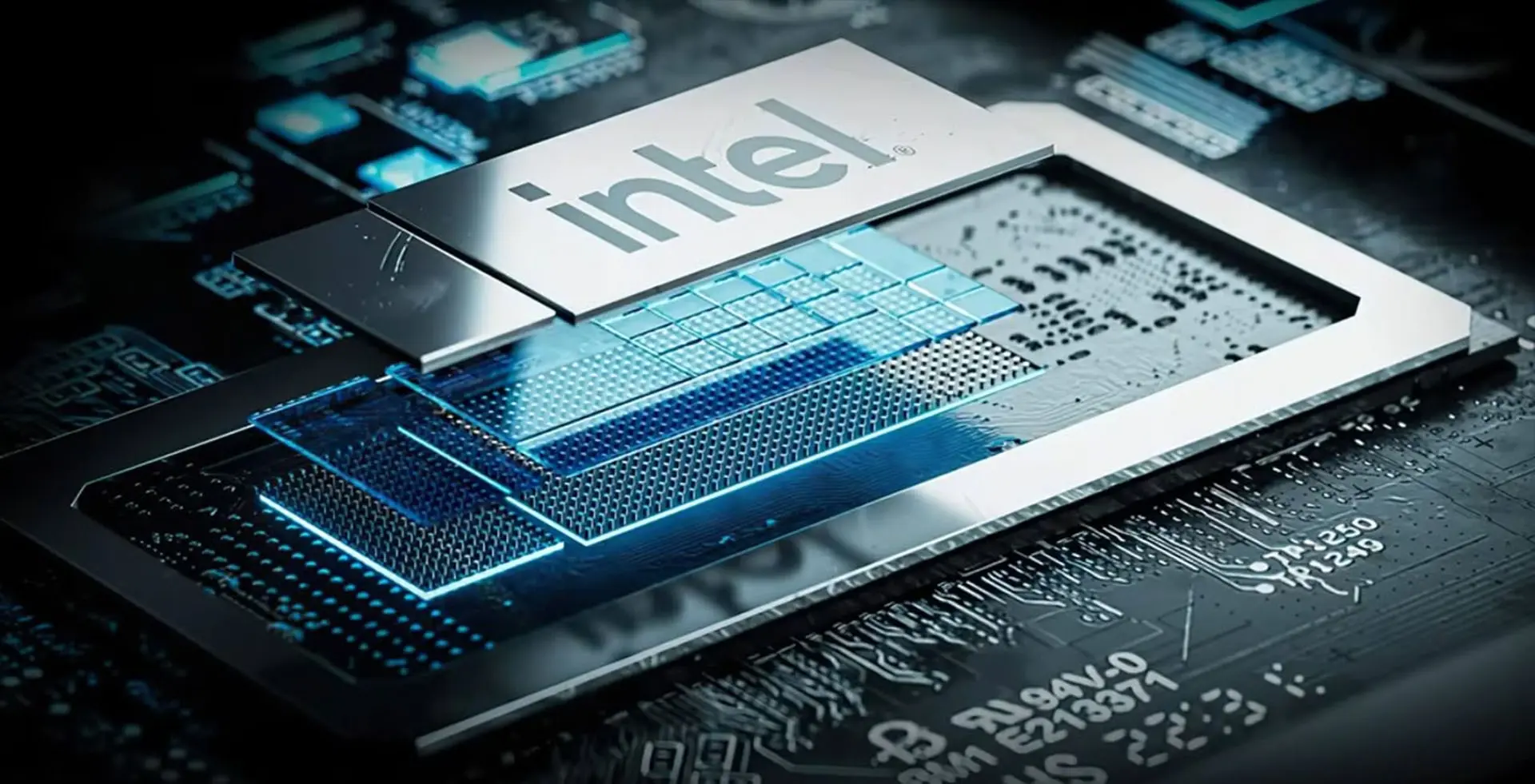

Equipped with Intel i7-12700H to i9-13900H processors (14 cores and 20 threads, 45W TDP), multi-core performance is 63% higher than previous generation mini hosts.
