Best China Suppliers Factory - Mid-to-High-End Fanless Industrial Mini Computer with Intel Core i7, Multiple Display Outputs Companies, Factories

**Product Description for the GM1 Mini PC**, Introducing the GM1 Mini PC, a powerful and compact computing solution designed to meet the demands of modern technology, **Basic Specifications:**, - **Product Model:** GM1, - **CPU:** Equipped with the latest Intel Core i7 processors, including i7-1235U, i7-1255U, i7-1335U, and i7-1355U, all featuring a TDP of just 15W for efficient performance, - **Dimensions:** The GM1 boasts a sleek appearance with dimensions of 170*126*51.3mm, making it an ideal choice for limited spaces, - **Display Interfaces:** Enjoy seamless connectivity with dual HDMI outputs supporting 2.04K at 60Hz, one DP 1.4, and one Type-C Thunderbolt 4, perfect for multitasking and high-resolution displays, - **Weight:** Weighing in at approximately 945g, the GM1 is lightweight and easily portable, suitable for various environments, As a leading manufacturer in China, we take pride in our commitment to quality and innovation. Our factory operates utilizing the latest technology and practices to ensure that every unit meets the highest standards. Trust us as your reliable suppliers for cutting-edge computing solutions. Experience the power of the GM1 Mini PC and elevate your computing experience today!

Send Inquiry

Product Description

Product Detailed Specification

Processor specifications	CPU:	Intel Core i7-1235U / i7-1255U / 1335U / 1355U et al. TDP: 15W	Internal storage	Memory type:	DDR4 2133–3200 MHz or 2 × DDR5 4800–5200 MHz
	CPU platform:	Intel 12th / 13th Gen CPU		Memory slot:	2 × DDR4 SO-DIMM up to 64 GB or 2 × DDR5 SO-DIMM up to 96 GB
	Graphics:	Intel® Iris® Xe Graphics — supports 4-display output		Memory slot:

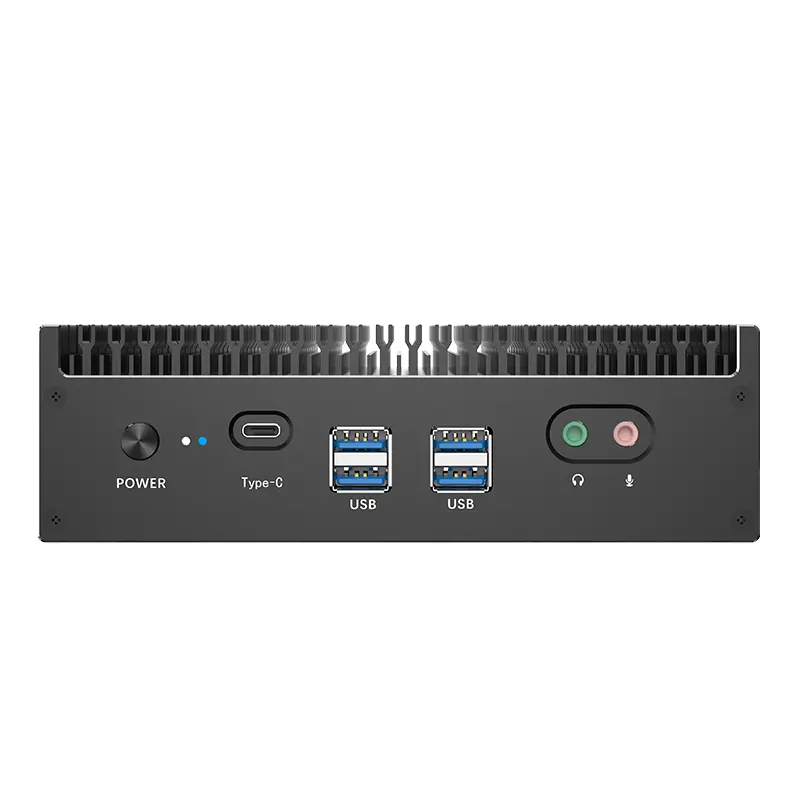

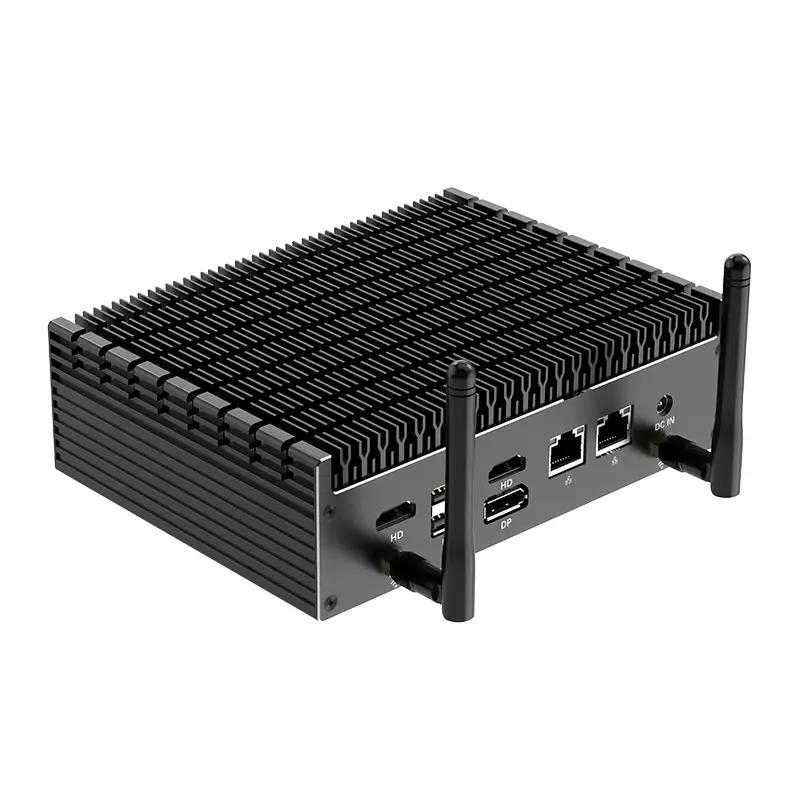

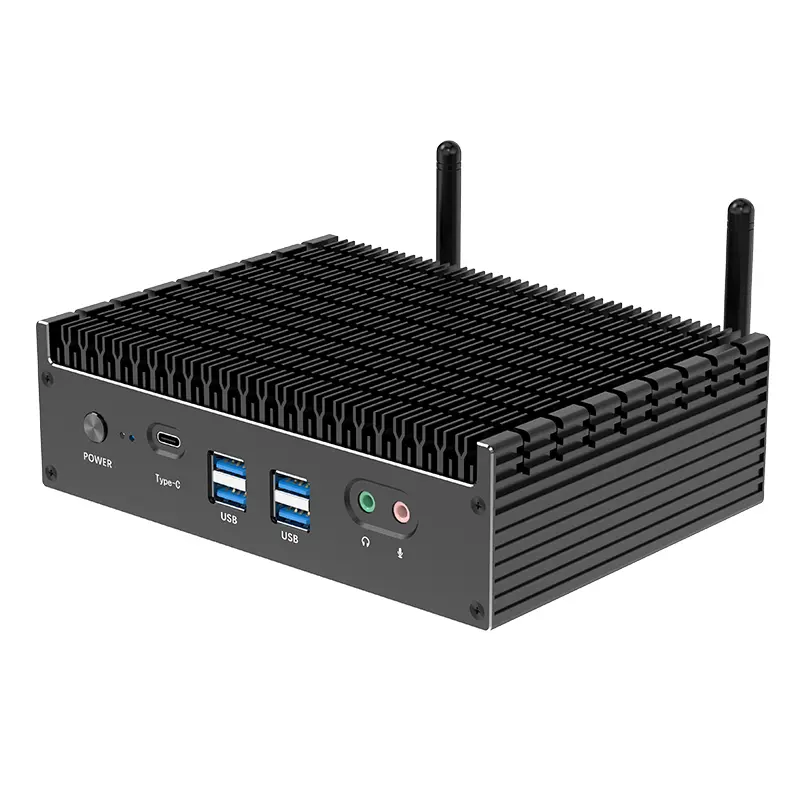

Front panel	Power button:	1 × Power Button	Back panel	Power port:	1 × DC Jack 5.5×2.5 mm (12–19 V)
	Thunderbolt:	1 × Thunderbolt 4 (compatible with PD)		Network:	2 × RJ45 2500 Mbps
	USB ports:	4 × USB 3.2 Gen1		Display output:	2 × HDMI 2.0 (4K@60Hz), 1 × DP 1.4 / 1 × Thunderbolt 4
	Audio:	1 × 3.5 mm headphone / 1 × 3.5 mm MIC in		USB ports:	2 × USB 2.0
Expansion slots	WiFi slot:	1 × M.2 2230 (WiFi / BT)	Other parameters	Dimensions:	170 × 126 × 51.3 mm
	SSD slot:	1 × M.2 2280 (SATA/NVMe Gen3), 1 × M.2 2280 (NVMe Gen4)		Weight:	Approx. 945 g
	HDD:	1 × SATA HDD 2.5-inch (optional)		Power adapter:	12V–19V 90W
	HDD:	1 × SATA HDD 2.5-inch (optional)		BIOS:	AMI UEFI BIOS — supports PXE, WOL

Advantages Over Mainstream Competitors

Three-Screen Heterogeneous Output: Desktop-Level Expansion

1Display & Control

Display matrix: HDMI 2.0 + DP 1.4 + Thunderbolt 4 (Supports 8K and 65W PD)
Industrial control: Run SCADA, heat maps, and PLC debugging simultaneously
Creative design: 4K editing with hardware AV1 decoding (30% less power)

2Storage Architecture

Dual M.2 slots support RAID 0/1 for speed or security
Video production: RAID 0 achieves up to 6,800 MB/s read speeds
Durability: Anti-vibration bracket for 2.5-inch HDD (50G impact protection)

3Thunderbolt 4 Ecosystem

40 Gbps data / 8K display / 90W reverse power supply
External GPU support (RTX 4060) for 3D rendering
Daisy-chain technology for multi-monitor setups

Industrial-Grade Technology Innovation

1Thermal Management

Nano silicon carbide coating — CPU ≤68 °C at full load
Intelligent switching: fanless mode vs turbo active cooling

2Advanced Networking

Intel AX201 WiFi 6 (2.4 Gbps) with 60% reduced latency
Bluetooth Mesh supports 30+ industrial-grade sensors

3Robust Certification

12–19V wide voltage input (±30% fluctuation tolerance)
−20 °C cold-start tech and IP40 dustproof structure

Vertical Industry Solutions

1Quality Inspection

OpenVINO optimization for AI defect detection
Processes 2,000 product images per second

2Financial Terminals

Three independent screens for global market data
Optional ECC memory for zero-error trading

3Smart Medical

HDMI connection to DICOM calibration displays
Antibacterial magnesium alloy shell & EN 60601-1 certification

OEM/ODM Customized Service

1Hardware Transformation

Extended PoE+ network ports (30W) and customized GPIO control boards (8-way digital I/O).

2Software Ecosystem

Pre-installed Windows 11 IoT or Ubuntu Core 24 with Modbus TCP/Profinet stacks.

3Military-Grade Support

MIL-STD-810H drop protection and IEC 60068-2-6 vibration certification.

As a benchmark Small Desktop PC in the era of industrial IoT, NX-200 has become the preferred tool for smart manufacturing, financial technology and mobile medical care through triple-screen output, Thunderbolt 4 ecosystem and military-grade reliability. Now open to deep customization of hardware configuration, cooling solutions and appearance components — providing five-year global warranty and 24/7 technical support.

Frequently Asked Questions

QWhat CPU options are available for the NX-200?

The NX-200 supports Intel 12th and 13th Gen processors including the Core i7-1235U, i7-1255U, i7-1335U, and i7-1355U (15W TDP) for a balance of power and efficiency.

QHow many displays can the NX-200 support simultaneously?

It supports up to 4 simultaneous displays via 2 × HDMI 2.0 (4K@60Hz), 1 × DisplayPort 1.4, and 1 × Thunderbolt 4.

QWhat storage expansion options does it offer?

Features two M.2 2280 slots (NVMe PCIe Gen3 and Gen4) plus an optional 2.5-inch SATA HDD bay. RAID 0/1 is also supported.

QIs it suitable for harsh industrial environments?

Yes. It features wide voltage input (12–19V), −20 °C cold-start technology, IP40 dustproof protection, and is certified to MIL-STD-810H standards.

QDoes the NX-200 support OEM/ODM customization?

Absolutely. We offer deep customization for PoE+ ports, GPIO boards, OS pre-installation (Windows IoT/Ubuntu), and custom materials with a five-year global warranty.

QWhat are the advantages of the Thunderbolt 4 port?

It provides 40 Gbps data transfer, 8K display output, and 90W power delivery. It can daisy-chain monitors or connect external GPU docks for high-performance tasks.
