| Basic Specifications | Product Model | NB01 |

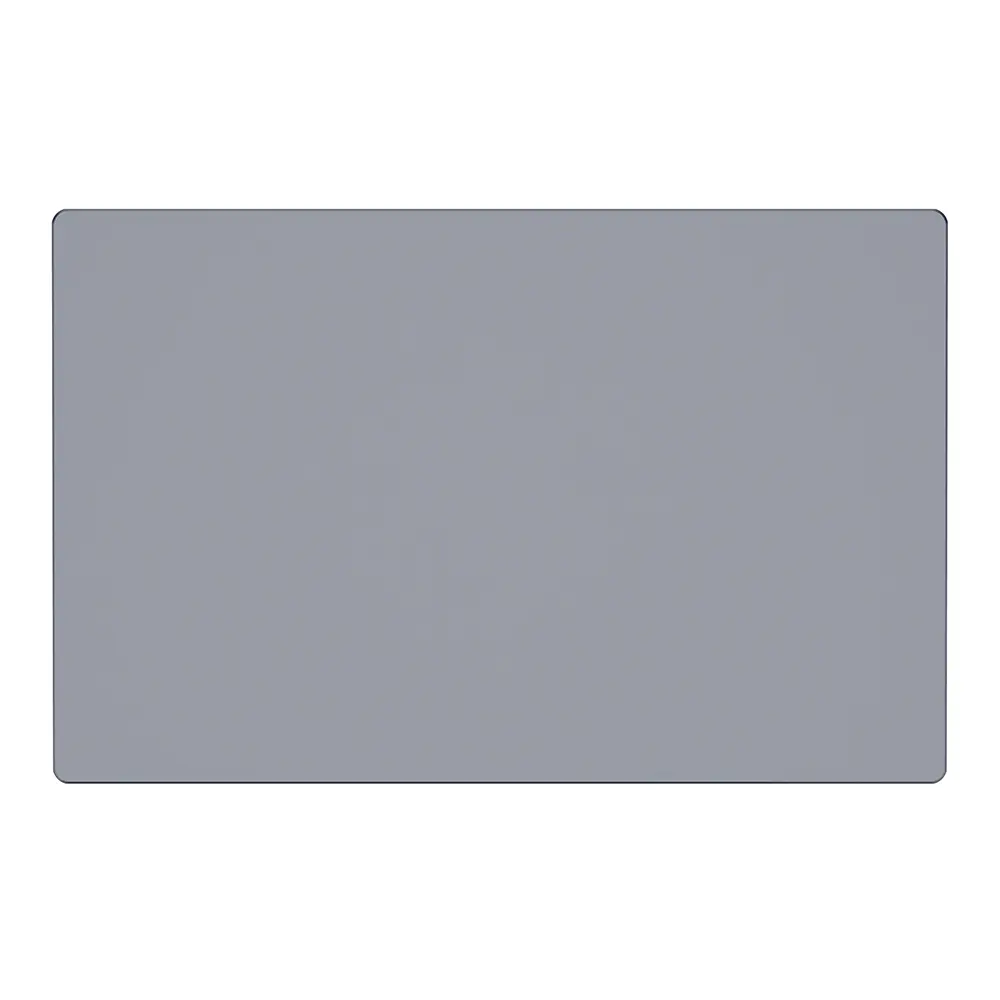

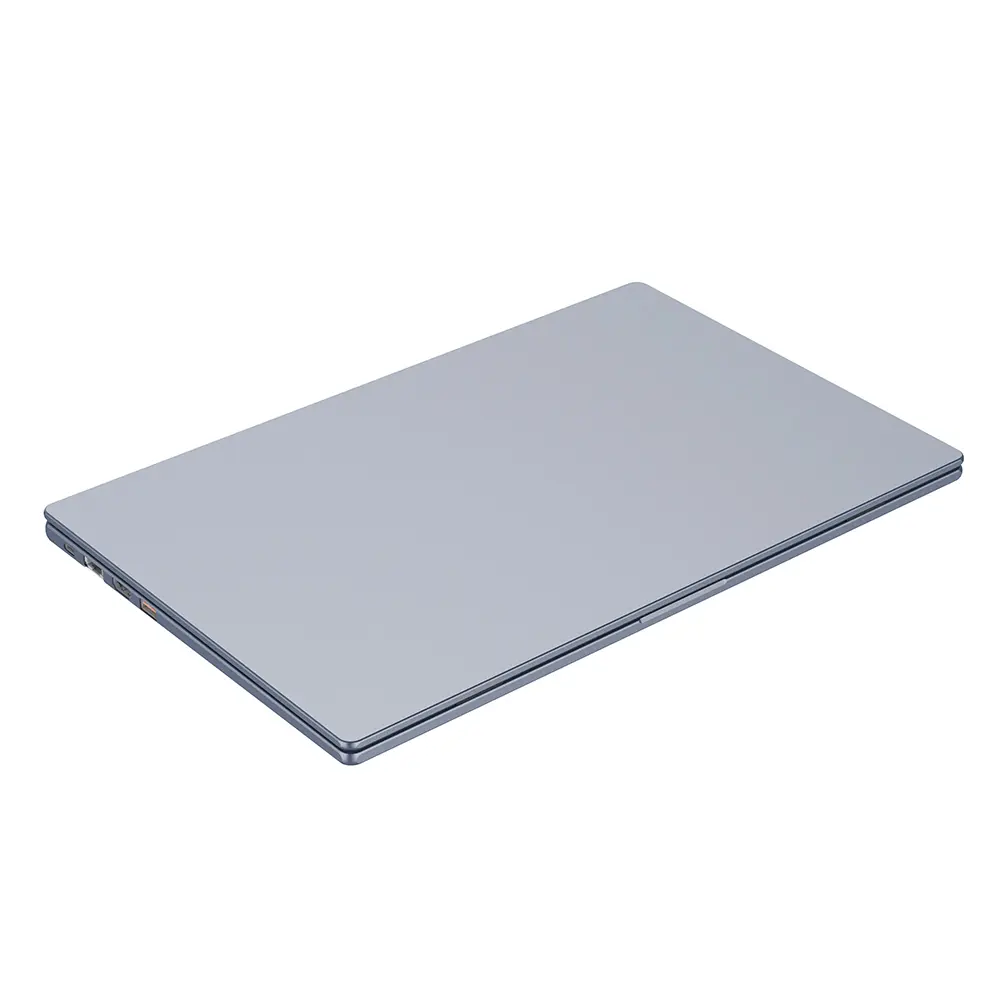

| Product Appearance | Metal ash aluminum alloy | |
| Resolution Ratio | 1920 × 1080 | |
| Dimension Scale | 15.6-inch / 16:9 | |
| Weight | About 2KG | |
| Hardware Configuration | CPU | i3-1115G4, i5-1135G, i7-1165G7 |
| Video Card | Intel® Iris® Xe Graphics MX450 2G | |
| Internal Storage | 2 × DDR4 SO-DIMM DDR4 2133MHz - 3200MHz | |
| Cache / SSD | 1 × M.2 2280 slot (SATA / NVMe Gen3 ×4) | |
| Wi-Fi | 802.11 b/g/n/AC/AX + Bluetooth 4.0 or above | |
| Camera | 1.0 MegaPixel | |
| Speakers | 2 Stereo Speakers | |
| Microphone | One analog microphone | |
| Touchpad / Fingerprint | Yes (integrated) | |

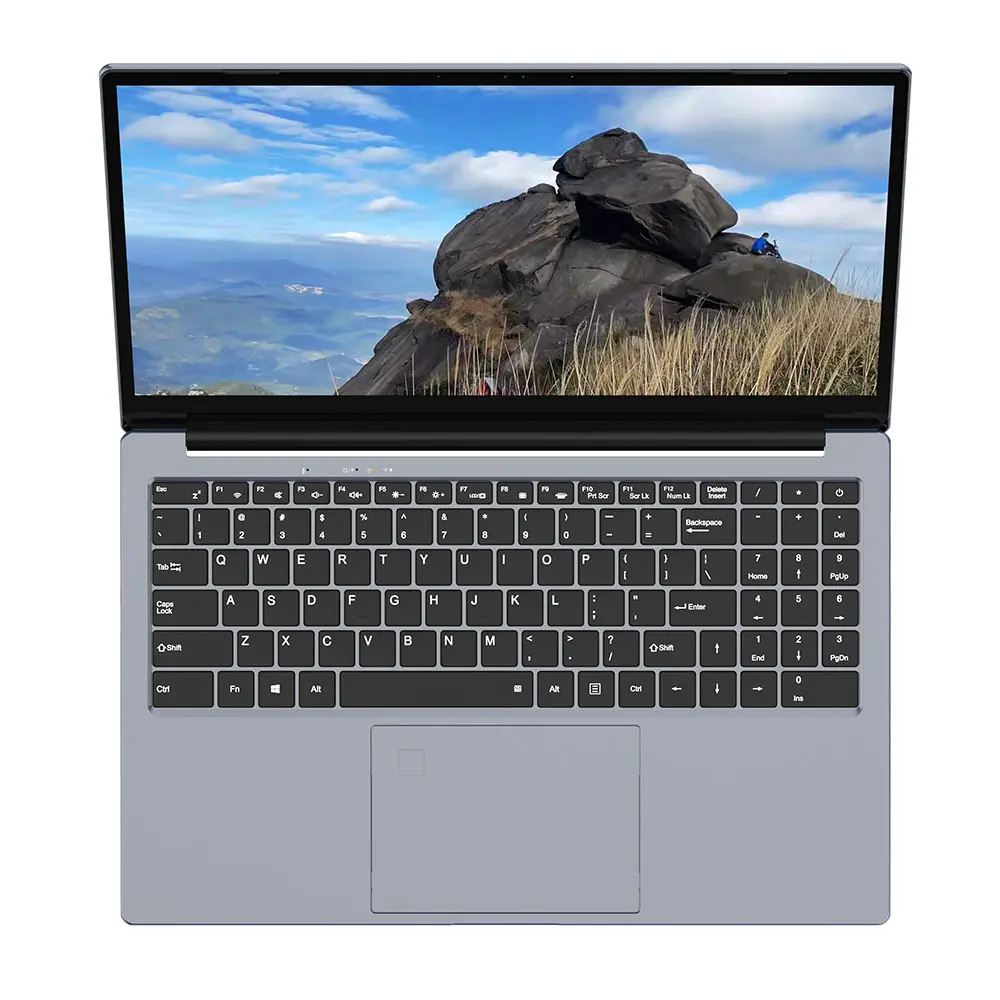

| Keyboard | Chocolate keyboard + Backlit | |
| Hall Switch | Support closed breath screen | |
| I/O Interfaces | Left-side | 1 × Type-C (USB3.0/DP), RJ45 1000M, HDMI 1.4, 1 × USB 3.0 |
| Right-side | 1 × Type-C (PD 100W), 2 × USB 2.0, φ3.5mm Jack | |
| Battery/Power | PD 20V 100W, 11.4V 5800mAh 3-cell battery |
Wireless: Intel AX201 (2.4Gbps) with Smart Connect. Prioritizes 5GHz for video conferencing (efficiency +65%).
Bluetooth: 5.1 supports 1-to-7 multi-device connection with adaptive frequency hopping (AFH).
Display: 1920×1080 IPS matte screen, TÜV low blue light certified + DC dimming. Blue light filtering rate 45%.
Audio: Waves MaxxAudio Pro tuned dual speakers; voice enhancement identifies speakers 8 meters away.
